PLC FX1S-10MR-001 14MR 20MR 30MR/T

Mitsubishi FX1S series PLC is suitable for small packages. It is the first choice for users who want low cost and seek powerful control within a limited I/O range. FX1S can provide 30 I/O points and can transmit data through serial communication. The MT model also has positioning capabilities and is widely used in various small mechanical equipment.
Overview:
1. The host has 4 types: 10 points (6I/4O), 14 points (8I/6O), 20 points (12I/8O), and 30 points (16I/14O)
2. This type of PLC is mainly used for devices with few control points with all digital inputs and digital outputs
3. It can be directly connected to 220V AC power, built-in 8K-step EEPROM memory, no battery inside, and easy maintenance
4. This series of transistor output (MT) PLC can output 2 100KHz pulses to directly drive servo or stepper motors
5. This series of PLCs cannot have expansion modules, but a small amount of I/O can be expanded by installing a BD board
6. This series of PLCs can realize RS232, RS485, and RS422 communications by installing a 1N series BD board
Features:

● FX1S series PLC integrates excellent features into a very small controller.

● FX1S is suitable for small packages. It is the first choice for users who want low cost and seek powerful control within a limited I/0 range.
● FX1S provides up to 30 I/Os and can transmit data via serial communication, so it can be used in places where commonly used compact PLCs cannot be used.
● FX1S is small in size but powerful in functions:
1) The host has 10/14/20/30 points, divided into transistor output/relay output, AC power supply/DC power supply, and has a storage capacity of 2000 steps.
2) Positioning and pulse output functions: Each phase in a PLC unit can simultaneously output 2 points of 100KHz pulses.
3) The PLC is equipped with 7 special positioning instructions, including zero return, relative address expression and special pulse output control.
4) The display module or analog quantity can be connected through the expansion board to expand the input and output points.
5) The analog potentiometer can be added using the expansion board, and the input and output points are increased.
6) The display module FX1N-5DM can also be installed, which can monitor and edit timers, counters and data registers.
7) Analog input and output can also be realized through FX1N-2AD-BD and FX1N-1DA-BD.
8) Network and data communication functions: By connecting expansion boards or special adapters, various communications and data links can be realized, such as RS485, 422, 232.

Model:

Basic unit (AC power supply, DC input type)
There are 4 types (8 models) of basic units of AC power supply, DC input type, with built-in DC24V sensor power supply (400mA)
Model Total
Points Number of input and output points, input and output form Dimensions
W×H×D (mm) Weight
Input Output
FX1S-10MR-001 10 points 6 points AC220V 4 points Relay 60×90×75 0.3kg
FX1S-10MT-001 Transistor
FX1S-14MR-001 14 points 8 points AC220V 6 points Relay 60×90×75 0.3kg
FX1S-14MT-001 Transistor
FX1S-20MR-001 20 points 12 points AC220V 8 points Relay 75×90×75 0.4kg
FX1S-20MT-001 Transistor
FX1S-30MR-001 30 points 16 points AC220V 14 points Relay 100×90×75 0.45kg
FX1S-30MT-001 Transistor
Basic unit (DC power supply·DC input type)
There are 4 types (8 models) of basic units of DC power supply·DC input type, and the AC power supply type is relatively thin
Model Total
Points Number of input and output points·Input and output form External dimensions
W×H×D (mm) Weight
Input Output
FX1S-10MR-D 10 points 6 points DC24V 4 points Relay 60×90×75 0.22kg
FX1S-10MT-D Transistor
FX1S-14MR-D 14 points 8 points DC24V 6 points Relay 60×90×75 0.22kg
FX1S-14MT-D Transistor
FX1S-20MR-D 20 points 12 points DC24V 8 points Relay 75×90×75 0.4kg

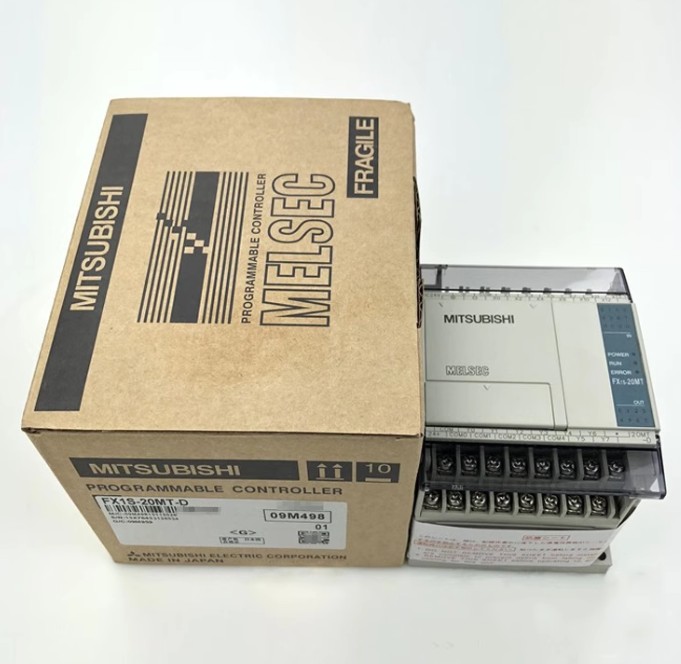

FX1S-20MT-D Transistor
FX1S-30MR-D 30 points 16 points DC24V 14 points Relay 100×90×75 0.35kg
FX1S-30MT-D Transistor
